Cooling elements
ECOCOOL provides a wide range of cooling elements
- Water-Coolpacks
- Water-based Gel-Coolpacks
- Reusable hard shell packs
- Customized, dimensionally stable cooling elements with foam core (foam bricks) with various cooling agents (water, PCM)
- Absorber cooling elements

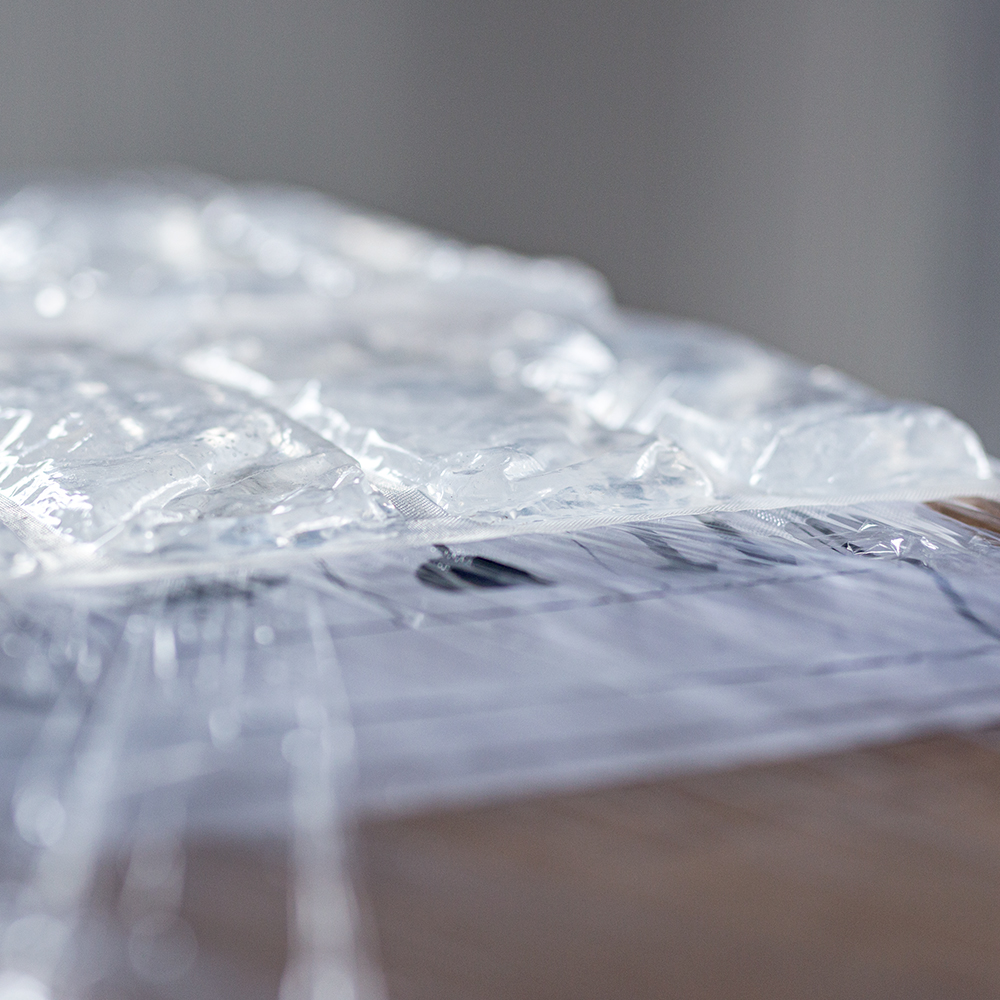

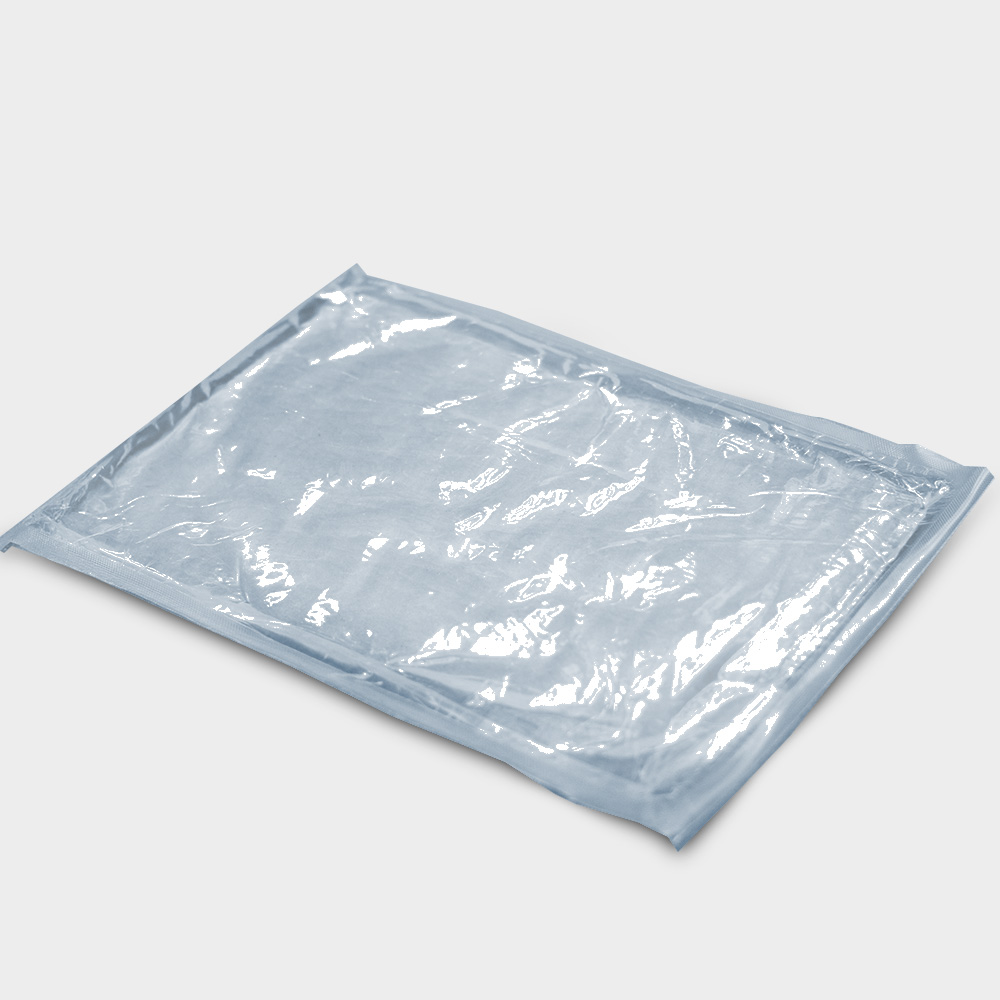

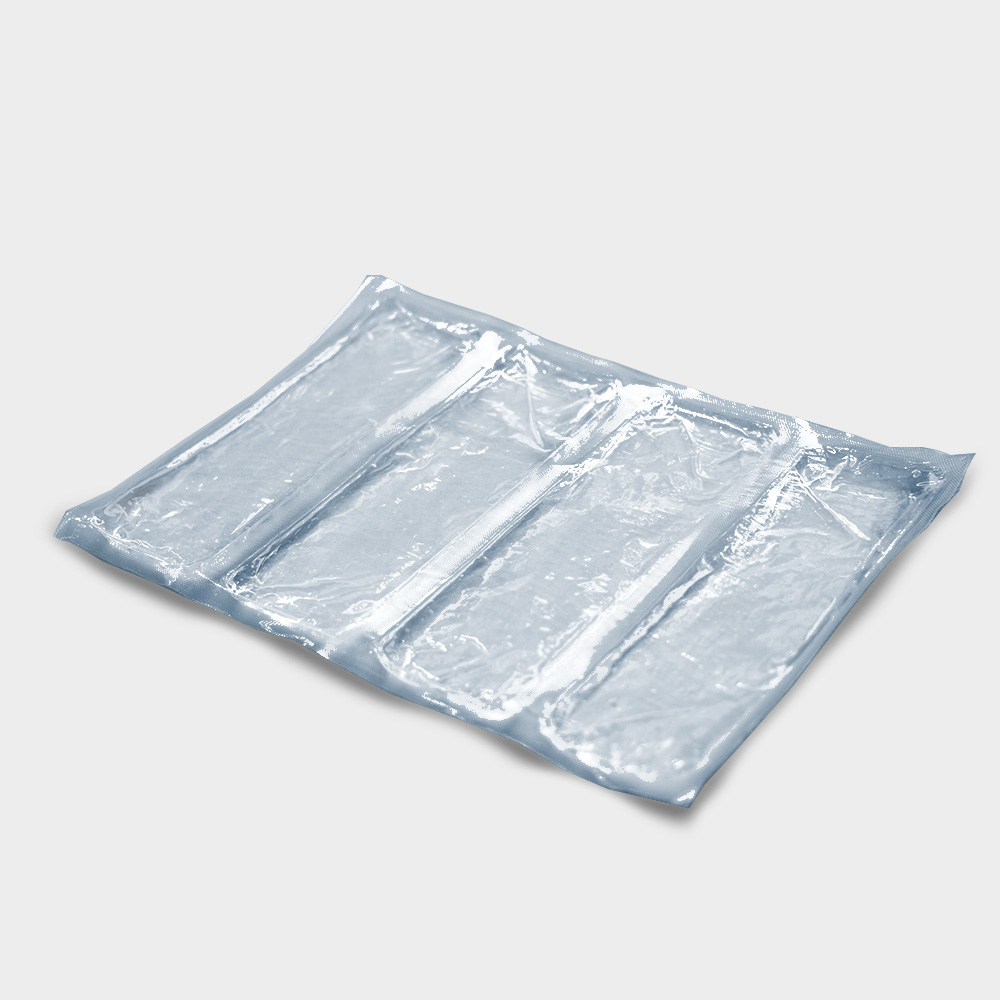

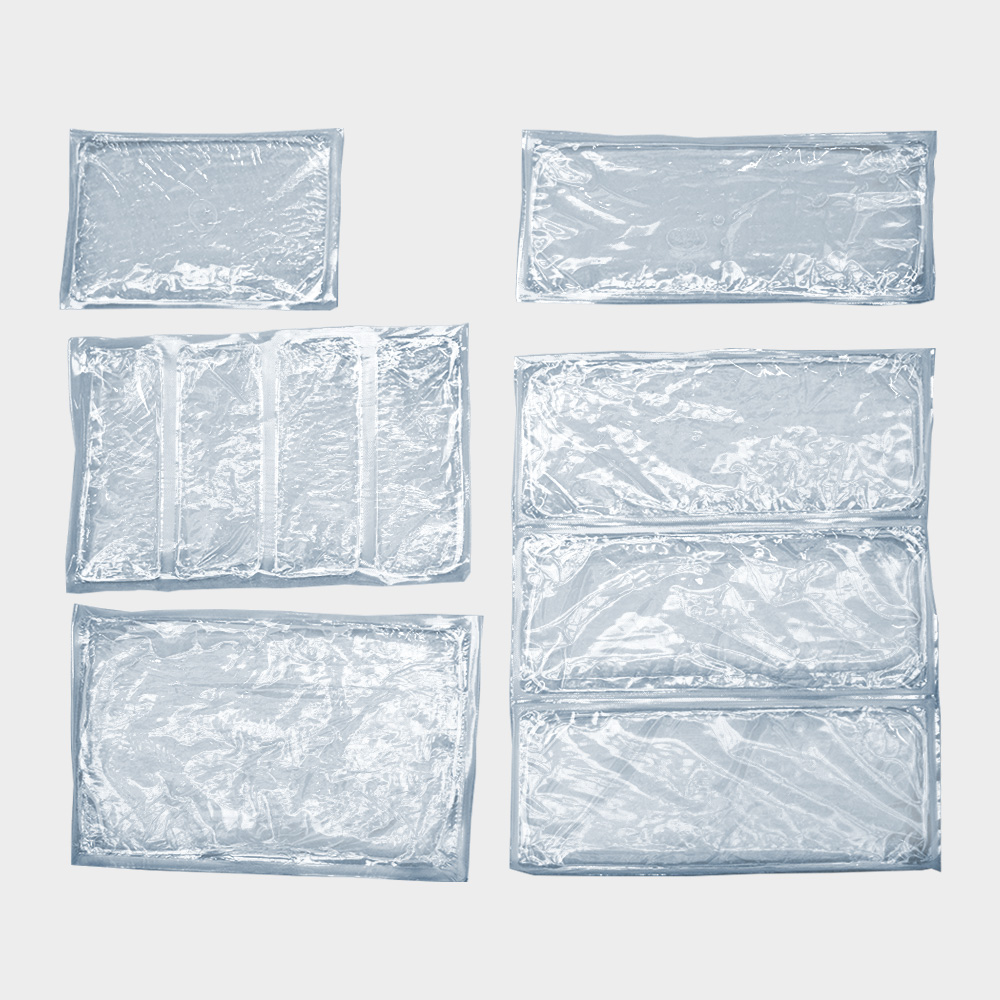

Water-Coolpacks

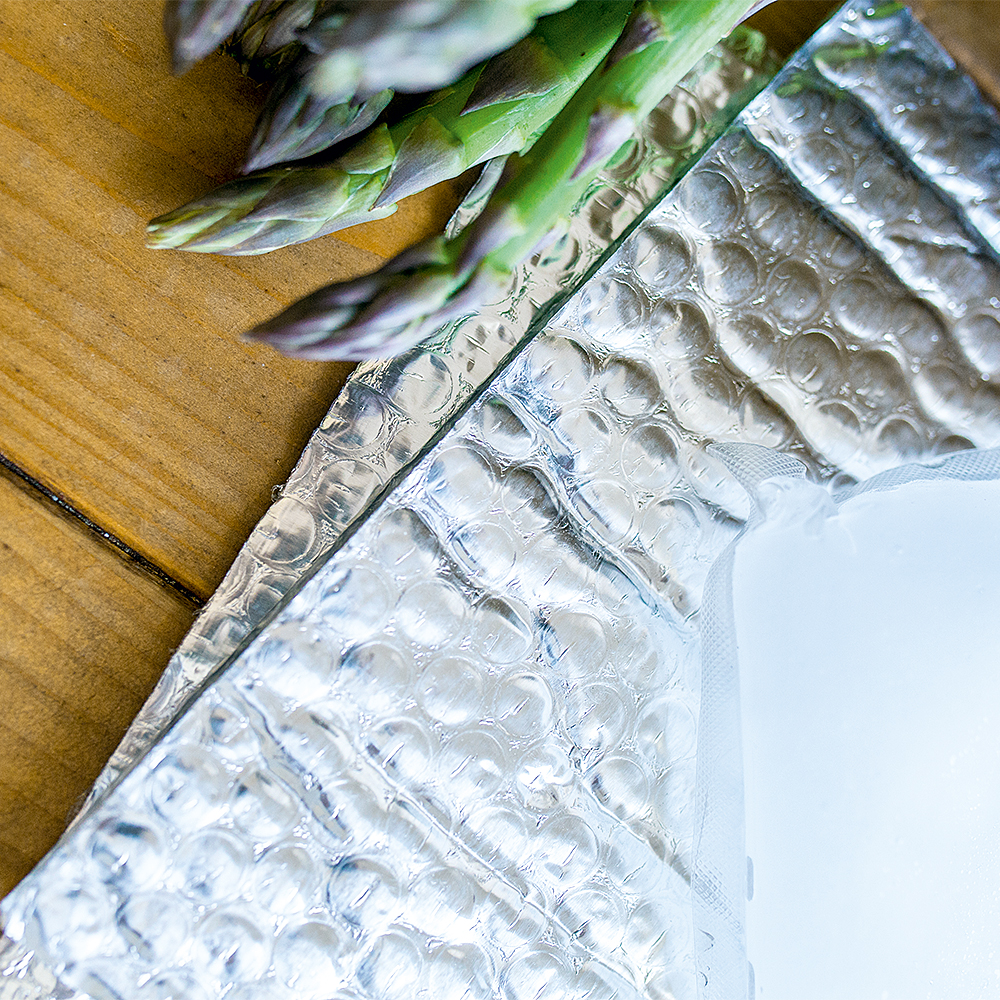

The water cooling elements are ideal for transporting foodstuffs that require refrigeration. After draining off the melt water, the remaining light packaging is simply returned to the value-added cycle. The filling is clear water, free of any additives. After use, this can be used for watering flowers, for example.
Alternatively, the cooling elements can also be shipped in reusable folding boxes.
Especially in combination with our sustainable cooling packaging, the water-based cool packs provide a clear thumbs-up in terms of environmental as well as cooling balance.
Standard formats:
| Type | Dimensions [mm] | Weight [g] | Pieces / box | Pieces / pallet |
|---|---|---|---|---|
| 1.4 | 380 x 280 x 10 | 800 | 18 | 720 |
| 1.4 | 380 x 280 x 15 | 1.200 | 12 | 480 |
| 2.2 | 280 x 190 x 13 | 500 | 32 | 1.280 |
| 2.2 | 280 x 190 x 15 | 600 | 24 | 960 |
| 2.2 | 280 x 190 x 20 | 800 | 20 | 800 |
| 2.2 | 280 x 190 x 22 | 900 | 18 | 720 |
| 2.2 | 280 x 190 x 25 | 1.000 | 16 | 640 |
| 4.1 | 190 x 140 x 10 | 200 | 80 | 3.200 |
| 4.1 | 190 x 140 x 15 | 300 | 50 | 2.000 |
| 4.1 | 190 x 140 x 20 | 400 | 40 | 1.600 |
| 4.1 | 190 x 140 x 25 | 500 | 32 | 1.280 |
Water-based Gel-Coolpacks
Coolpack cooling elements are food contact approved, thermoformed, and water-based gel-filled cooling elements.
The following formats are available:
| Type | Dimensions [mm] | Weight [g] | Pieces / box | Pieces / pallet |
|---|---|---|---|---|
| 1.3 | 380 x 280 x 15 | 900 | 18 | 720 |
| 2.1 | 280 x 190 x 10 | 500 | 32 | 1.280 |
| 2.1 | 280 x 190 x 15 | 800 | 20 | 800 |
| 2.2 | 280 x 190 x 20 | 900 | 18 | 720 |
| 2.4 | 280 x 190 x 10 | 300 | 50 | 2.000 |
| 3.1 | 280 x 125 x 15 | 300 | 54 | 2.160 |
| 4.1 | 190 x 140 x 15 | 300 | 50 | 2.000 |
| 4.1 | 190 x 140 x 20 | 400 | 40 | 1.600 |
| 4.1 | 190 x 140 x 25 | 500 | 32 | 1.280 |
| 4.1 | 190 x 140 x 30 | 680 | 24 | 960 |
| 4.2 | 190 x 140 x 15 | 300 | 50 | 2.000 |

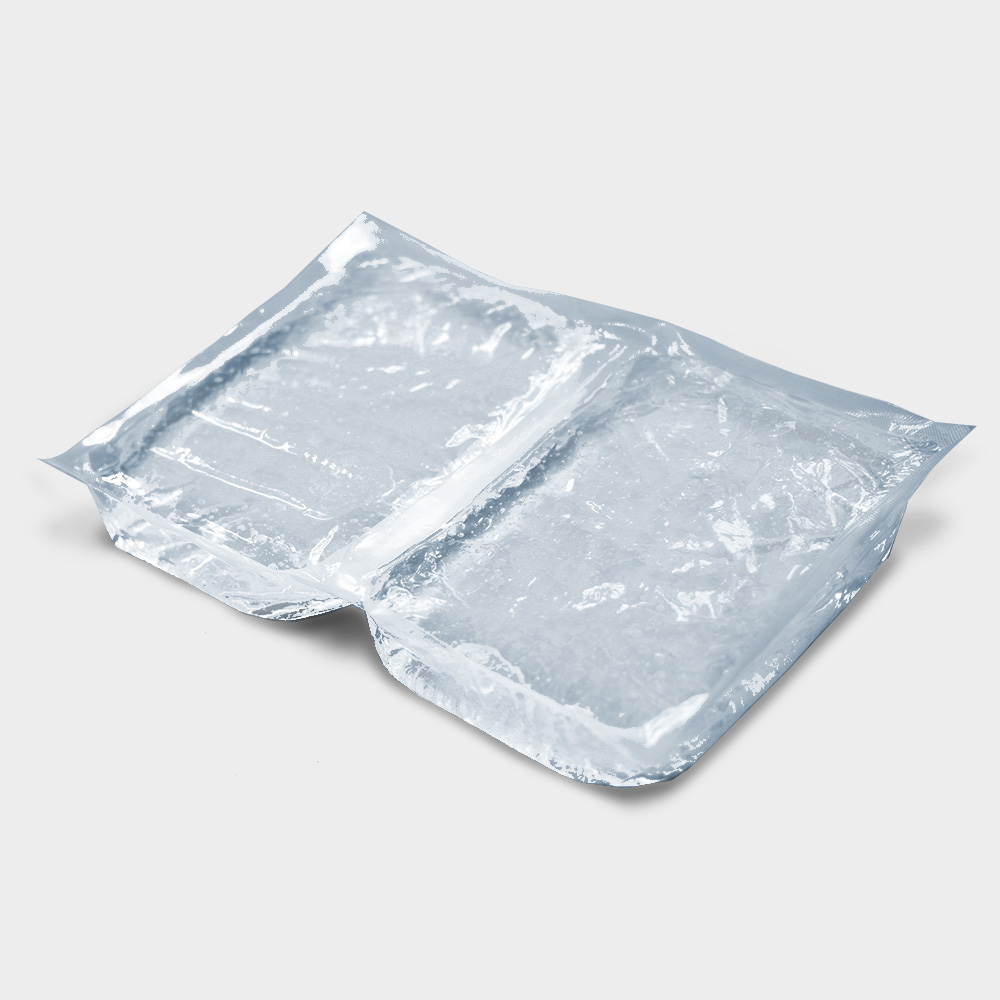

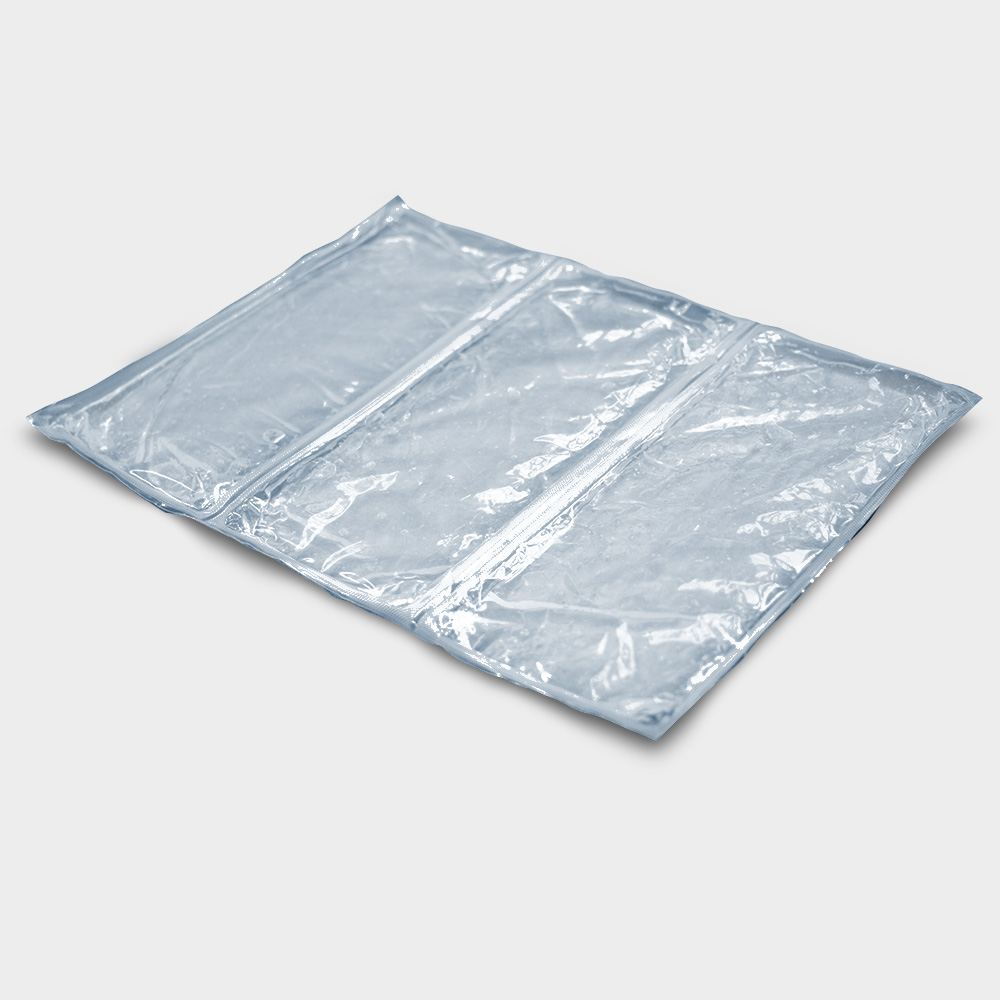

- The 2.4 and 1.3 formats can be folded along their seams, even when frozen
- Customer specific elements with printed or coloured foils available on request
- Non-standard capacities available
Reusable cooling elements
The following formats are available:
| Type | Dimensions (mm) | Weight | Pieces / box | Pieces / pallet |
|---|---|---|---|---|
| Ice-Box (small) | 168 x 84 x 24 | 260g | 50 | 2.450 |
| Ice-Box (large) | 210 x 130 x 25 | 640g | 18 | 600 |
- Stable cooling element with HDPE sleeve
- Various melting temperatures (0°C and -18°C) available
- Customisable with customer specific colours or embossing on request

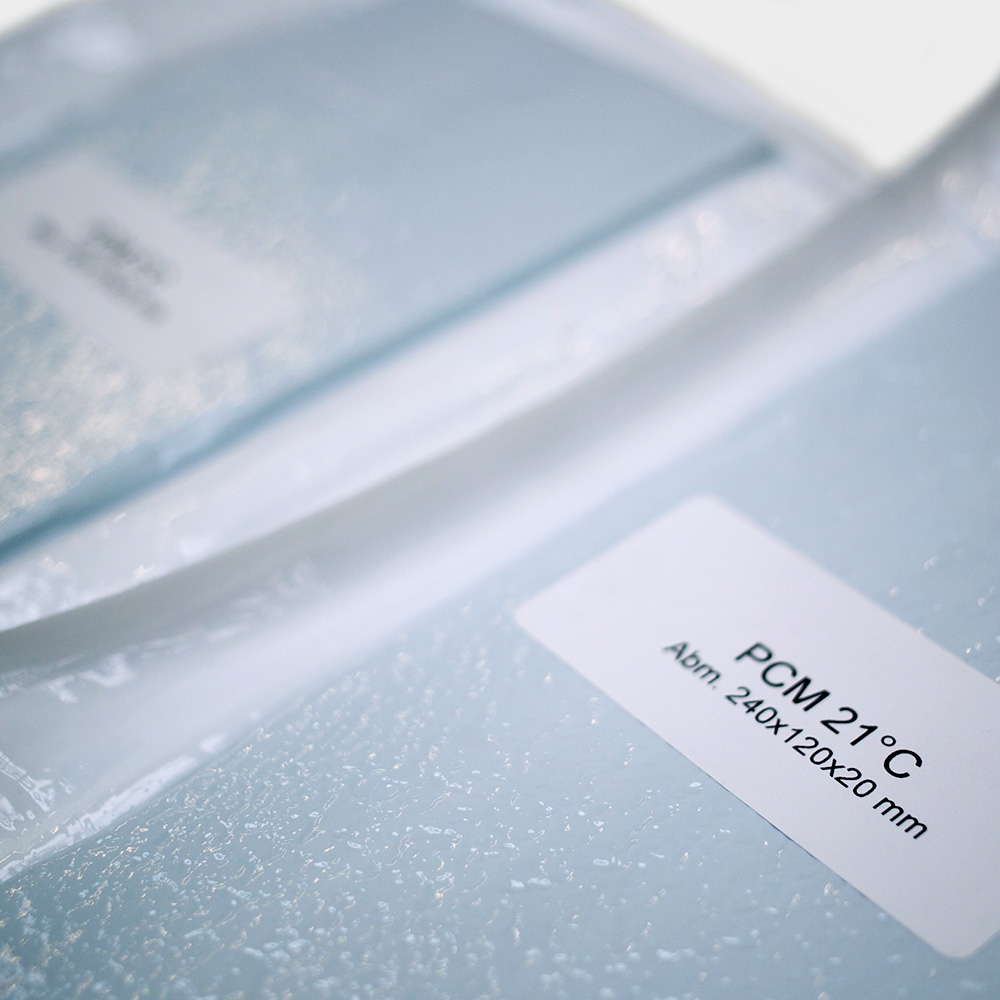

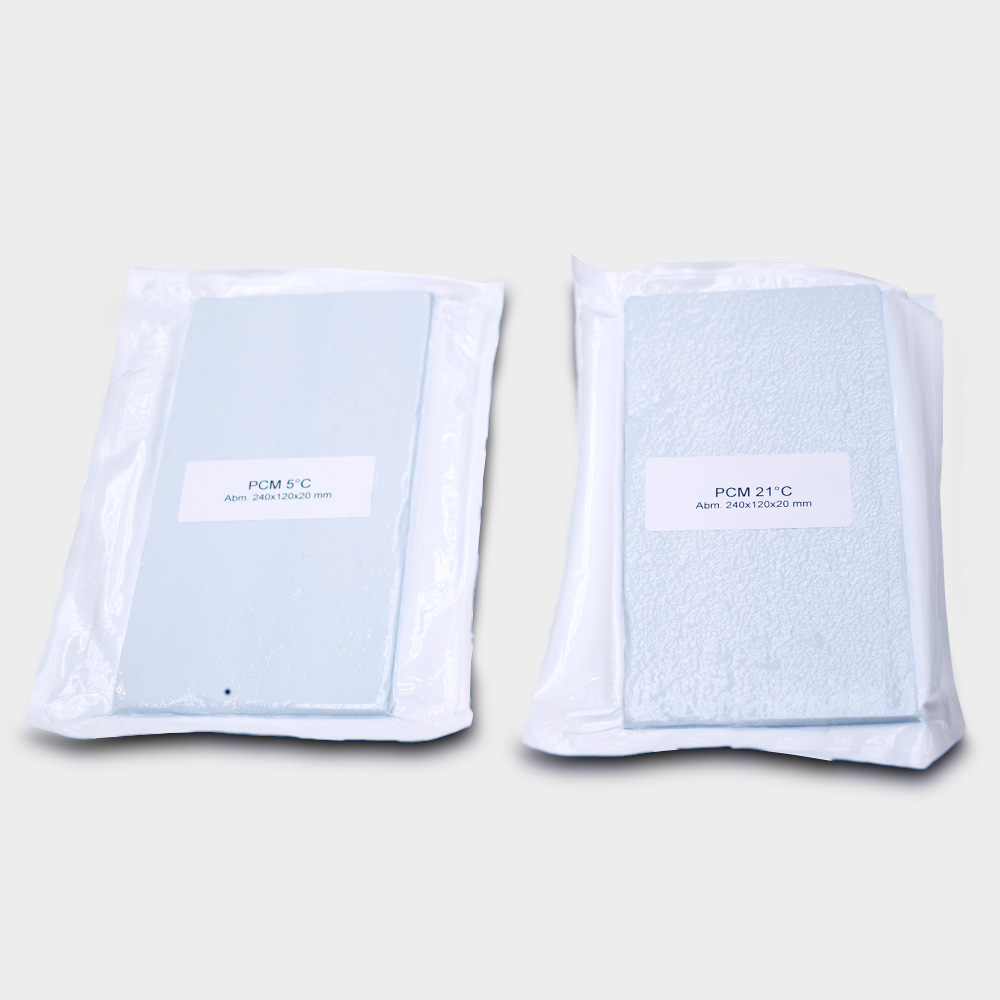

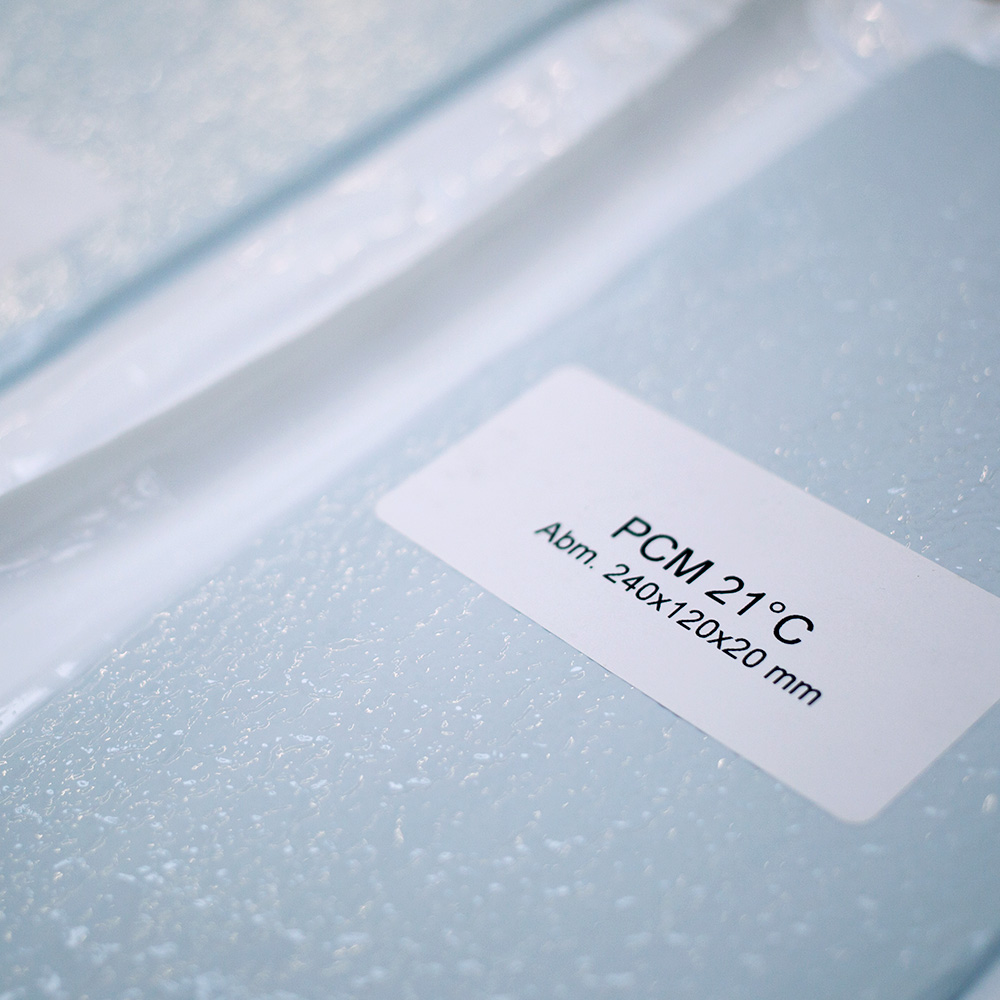

Dimensionally stable foam brick cooling elements
To ensure defined dimensions in both frozen and thawed conditions, dimensionally stable cool packs with foam core are available. ECOCOOL offers custom foam bricks with either water or PCM filling. With or without corrugated cardboard outer carton, as specified by customer.

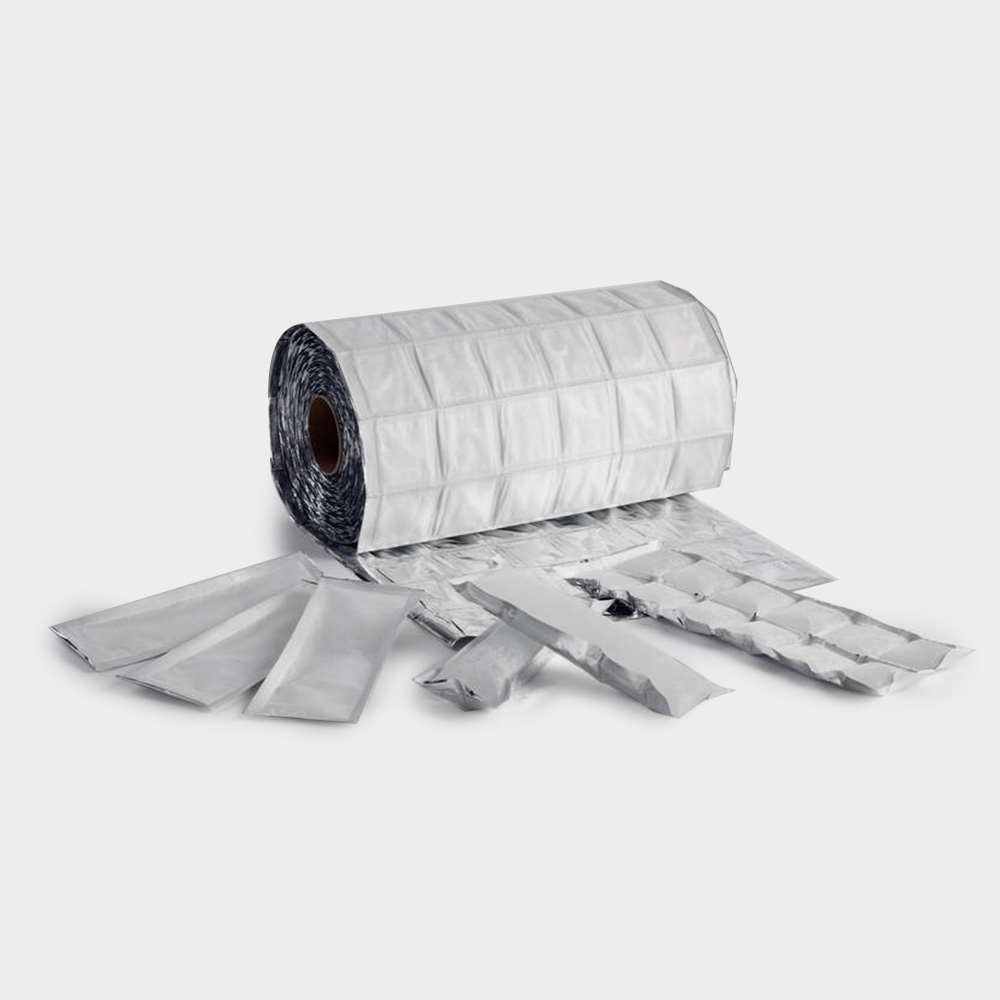

Absorber cooling elements
Sorba-Freeze absorber cooling elements are made from superabsorbent granules in a water permeable bag. The granules are non-toxic and certified for use with foodstuffs. The elements are watered and then frozen prior to use. Once thawed, the water remains absorbed in the elements.
